Model Number :

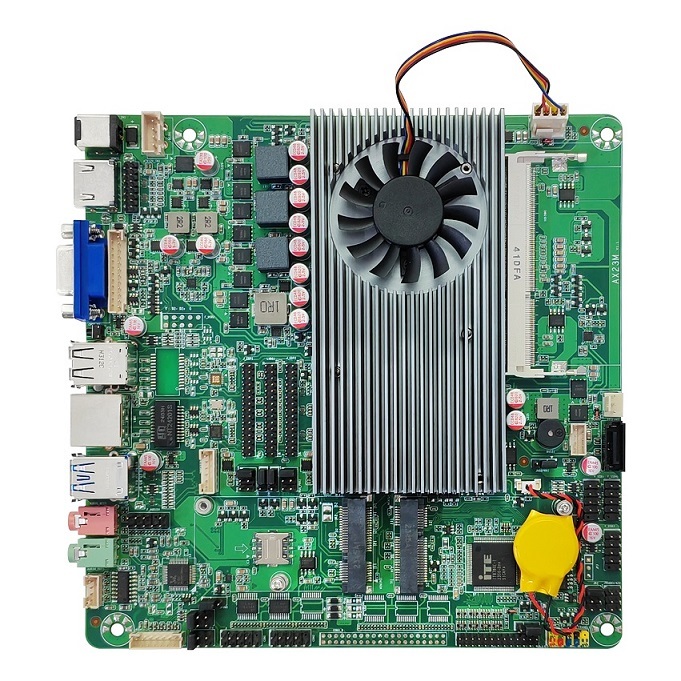

AX23m Industiral Mainboard
Model Name :
AX23m Industiral Mainboard
Motherboard chip :
Intel Sandy/Ivy Bridge
CPU :
Intel 2nd-3rd Generation -M CPU, TDP：35W，Optional: I3-2310M, I3-2350M, I5-3210M, I5-3230M, I7-3520M, etc.
memory :
1*DDR3 SO-DIMM, 1600MHz/8G, single slot supports up to 8G
WIFI/4G :
1*Mini PCIE slot (WIFI/4G)
network :
2*RJ45 interface， Realtek RTL8111H Gigabit NIC Chip
Display interface :

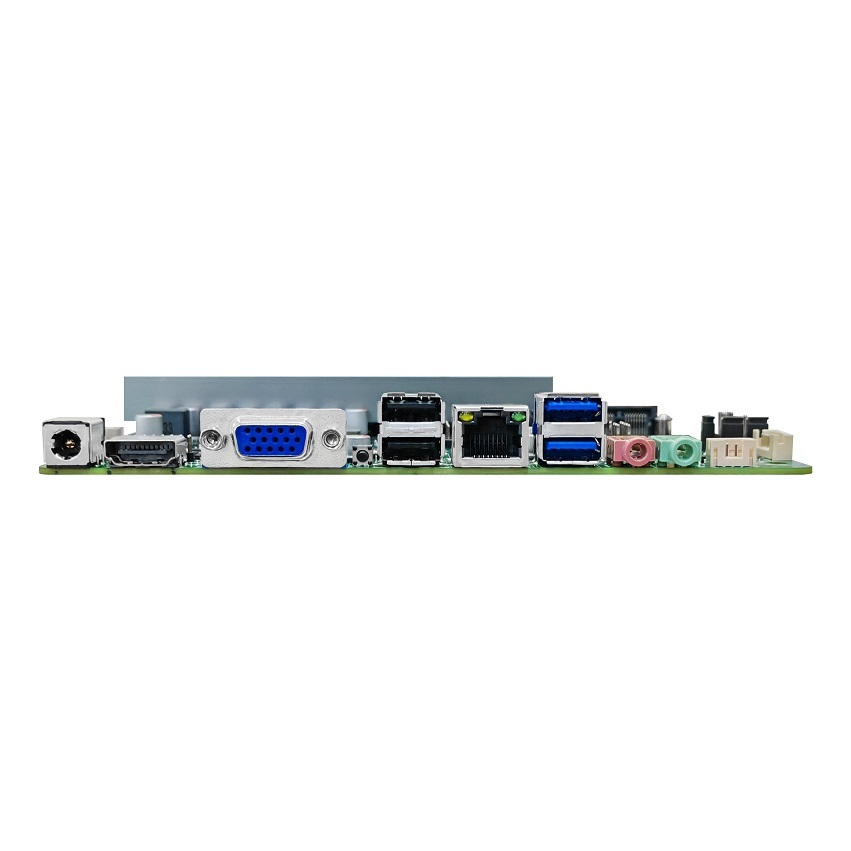

1*HDMI interface, 1*VGA interface (optional with built-in VGA), 1*LVDS interface, 2*EDP interface.
LVDS function :
1*LVDS 30Pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V), 1*3Pin backlight positive and negative jump cap.1*6Pin INVERTER interface, 1*3Pin screen backlight voltage jump cap (5V/12V).
serial port 1 :
6 serial ports: 2*9Pin serial port pin, 1*40Pin serial port pin, 2*3Pin serial port voltage pin, 2*3Pin serial port communication pin
serial port 2 :
6 serial ports all support RS232 mode, of which COM2 supports RS485 and RS422 mode, and COM3 supports RS485 mode.
EDP function :
2*EDP 30Pin pin, 2*3Pin screen voltage jump cap (3.3V/5V/12V).Support copy/extended display
EDP backlight function :
1*3Pin screen backlight voltage jump cap (5V/12V)
Power input :
1*DC socket; 2*2Pin ATX power socket (DC12V power input)
product size :
Thin Mini-ITX motherboard specification, 170 x 170 mm x 6L
other :
other 1 JCMOS button; 1*3Pin JAT jump cap; 1*3Pin USB live wake-up pin
Packaging Details :
Carton box
Delivery Time :
5-8 working Days
Supply Ability :
10000pcs/Day
MQO :
20
